Sandy Floor_ map

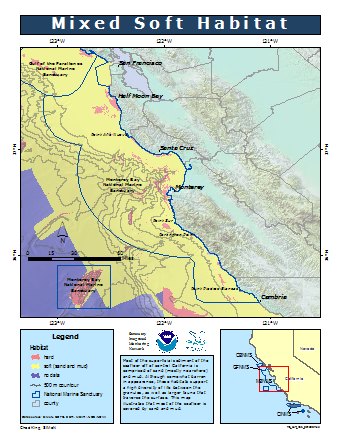

Figure 1. Zones of soft-bottom habitat within the Monterey Bay National Marine Sanctuary. [View Larger]
The nearshore zone extends from the surf out to waters that are approximately 30 meters (100 feet) deep. Along the coast of the Monterey Bay National Marine Sanctuary, nearly 80 percent of the nearshore seafloor is covered with soft sediments, such as sand and mud. At a casual glance the sandy seafloor looks barren of life, but with a closer view we see that many organisms make homes either on (i.e., epifaunal) or in (i.e., infaunal) the sediments.

Waves and currents interact with the sandy seafloor in this relatively shallow zone, creating sand waves and ripples and organizing sediment particles into different group sizes.

The composition of the benthic invertebrate communities living in these sediments has been studied extensively in Monterey Bay. Two communities are organized along a gradient of wave-induced substrate motion: The width and depth limits of these two zones vary, depending on the strength of wave activity. For example, the crustacean zone extends into deeper waters at times or locations where wave activity is greatest. Off a high-energy beach in Monterey Bay, the transition between the two faunal zones occurred at a depth of 14 meters. The polychaete zone is generally well developed in water depths of 20 meters or more in the sanctuary.

Benthic fishes are less abundant in the crustacean zone than the polychaete zone. Fish diversity on the sandy seafloor is relatively low compared to adjacent reefs, but some of the most abundant species are important forage for large predatory fishes, seabirds and marine mammals. In the sanctuary, representative species in this habitat are juvenile lingcod, white croaker, plainfin midshipman, staghorn sculpin, sand sole, English sole, speckled sand dab and curlfin sole.

The most common natural disturbance in the sandy seafloor habitat is from wave action. Other disturbances are biotic - such as from the digging activities of feeding southern sea otters, Enhydra lutris.

Fragile pink sea urchin Strongylocentrotus fragilis observed at 200 m.

Pom Pom anemone Liponema brevicornis observed at 200 m.

Human-induced disturbances, such as dredging, disposal of dredge material and bottom-tending fishing gear, have been shown to affect the physical structure of the sandy seafloor and subsequently alter the associated biological communities. However, the long-term impacts of many human activities on the sandy seafloor habitat and community are not well understood.

Monitoring

Seafloor Mapping
Mapping the seafloor is an ongoing research priority for the sanctuary. In 2004, scientists from the National Oceanic and Atmospheric Administration (NOAA) and the United States Geological Survey (USGS) used side scan sonar and underwater video technology to map the seafloor in previously unexplored areas and to ground truth existing habitat maps. In addition, researchers were able to characterize benthic macroinvertebrates and fish assemblages associated with different habitat types on the continental shelf. For example, sand-wave habitats were often occupied by sand dabs and often contained schools of juvenile rockfishes, while sediment-ripple habitats were commonly occupied by white brittle stars buried within the sediment.

Ecological Effects of the Moss Landing Thermal Discharge
Researchers from Moss Landing Marine Laboratories evaluated the ecosystem impacts of the Moss Landing Power Plant's thermal discharge into the sanctuary. The benthic community inhabiting subtidal sand bottom at one, four and six meters was sampled at the plume and at adjacent control sites. No impact on the shallow sandy seafloor of the thermal plume was detected. This study was the first to complete a baseline characterization of sandy seafloor community structure at this shallow depth in central California.

Distribution and Behavior of Sea Otters Relative to the Moss Landing Thermal Discharge Plume
Southern sea otters, Enhydra lutris nereis, have been observed in the thermal plume generated by the Moss Landing Power Plant. The plume is located over the shallow sandy bottom seaward of the entrance to Moss Landing Harbor. This study, completed by a researcher with UC Santa Cruz, found that sea otters are using the area within and immediately surrounding the thermal plume in a non-random fashion; however, the cause of this pattern could not be determined.

Sea otter behavior, and in particular feeding behavior, was generally similar between plume and non-plume areas. Plume foragers had a slightly higher frequency of occurrence of prey types associated with hard substrates, such as mussels and Cancer crab species, while non-plume foragers fed more commonly on soft-bottom species, including clams and fat innkeeper worms.

Identification of Critical Inshore Spawning Grounds for Market Squid
The market squid, Loligo opalescens, supports the largest commercial marine fishery in California, both in terms of quantity landed and dollars paid ex-vessel. This monitoring project, completed by researchers with the Marine Biological Laboratory and Woods Hole Oceanographic Institution, used acoustic sampling technology to find and measure the areas of greatest concentration of the market squid's benthic egg masses. This method, after further refinement, may allow quantification of the squid's annual reproductive output in Monterey Bay and identification of critical spawning habitat for this species.

Lilypad worm
Southwest Ocean Outfall Regional Monitoring Program
The City and County of San Francisco own and operate a pollution control plant that discharges treated municipal wastewater and storm water into the Pacific Ocean about six kilometers (3.75 miles) offshore of Ocean Beach. Approximately 50 stations are sampled annually for sediment quality and benthic infaunal community analysis. Ten of these sampling stations fall in the sanctuary.

No change in sediment grain size has been detected at the outfall. Benthic infaunal community composition represents an assortment of native species common in central California. Sediment grain size appears to be the most important factor structuring infaunal communities. The relative abundance of crustaceans on the shallow sand bars is consistent with the pattern of wave disturbance zonation described in prior studies in Monterey Bay. Wave action along the nearshore (20 meters) route of the cable caused cable strumming and consequent incision of rocky siltstone outcrops. In addition, frayed cable at the 43-meter station probably resulted from seafloor abrasion during high-energy events. Intense trawling activity in the area is another possible cause of damage to the cable.
